Piranesi Archipelago Integration

This mod acts as the client-side bridge between Piranesi Restoration Project and an Archipelago multiworld randomizer server. It handles:

Item Reception - Receives items from other players and adds them to inventory or grants room access
Location Checks - Sends checks when solving puzzles, entering rooms, and collecting items

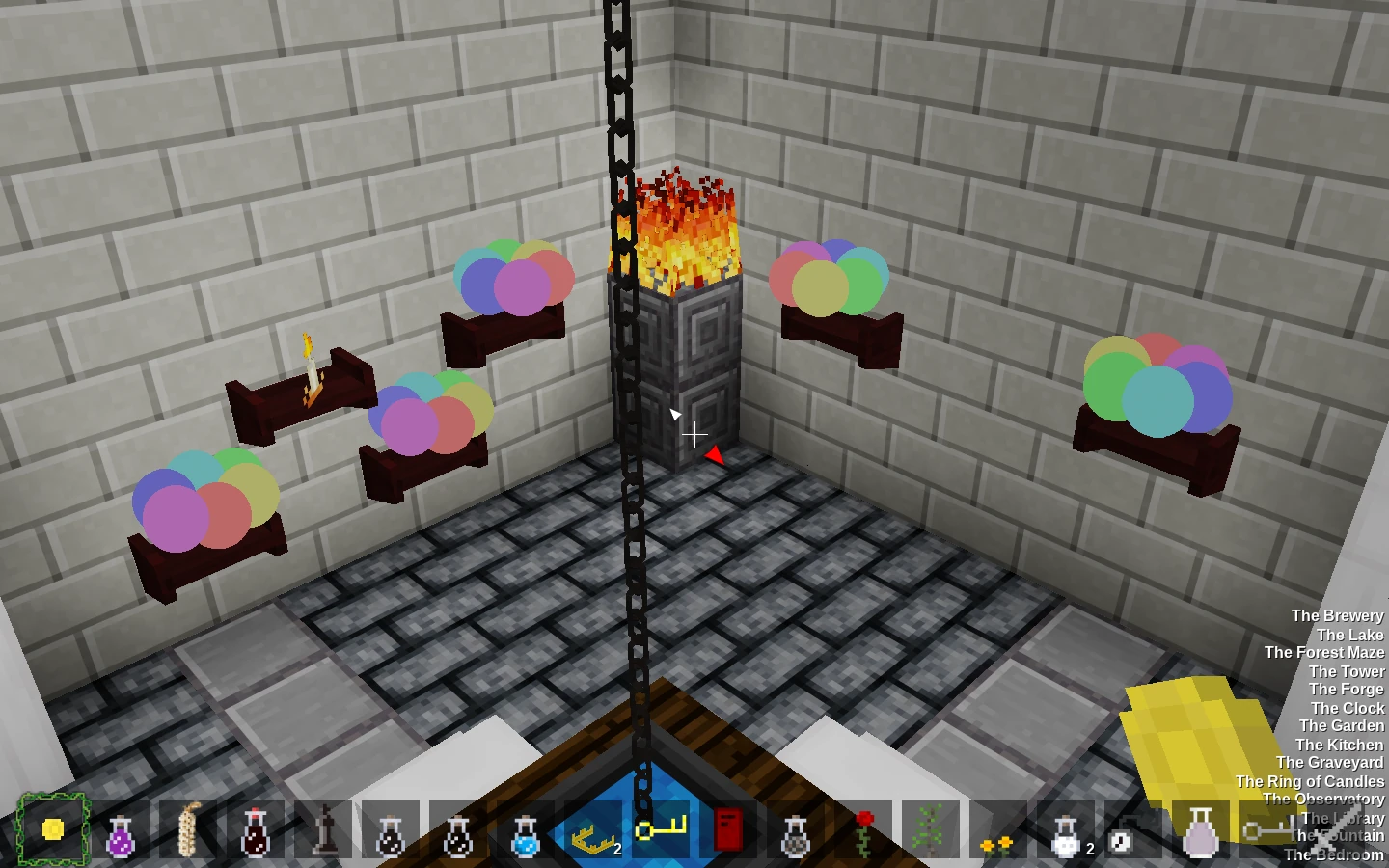

HUD Display - Shows received room access items in the corner of the screen
Chat Integration - Bridges game chat with Archipelago server chat

The mod is also packaged with piranesi.apworld, the Archipelago server-side component (a zip file containing source code and data that defines the game's configuration and logic).

Dependencies 🔗

This mod requires:

Piranesi Restoration Project game (all its internal mods)
[arclib](https://content.luanti.org/packages/Warr1024/arclib/) - Archipelago communication library (external dependency)

Installation 🔗

Install the piranesi_archipelago mod to your Luanti mods folder. Recommended method is installation via the Content browser.
Enable the mod when creating a new Piranesi world.

Setup 🔗

Before playing, you need to join an Archipelago multiworld:

Step 1: Prepare Your Player Files 🔗

Copy the example YAML: Edit example-player.yaml with your preferred player name and settings
Send to host: Give your YAML file to the person hosting the multiworld

Step 2: Provide Game Package 🔗

Give the piranesi.apworld file (included with this mod) to the multiworld host. They need this to generate the randomized world.

Step 3: Wait for Multiworld 🔗

The host will generate the multiworld and provide you with:

Server address (e.g., wss://archipelago.gg:54321)
Your slot name (matches your YAML file name)
Room password (if required)

Usage 🔗

Step 1: Start WebSocket Proxy 🔗

Before connecting, you must run the WebSocket proxy:

The WebSocket proxy is included with the arclib dependency
Run the proxy (binary for your platform or run from source) from a terminal/command prompt
The proxy will listen on http://localhost:9839

Step 2: Connect to Archipelago 🔗

In-game, use the /ap command to open the configuration form and enter:

Server URL - The server address from your host
Slot Name - Your player name from the YAML file
Password - Room password (if required)

Click "Connect" to join the multiworld.

Step 3: Play! 🔗

As you explore Piranesi:

Enter new rooms, solve puzzles, and collect items to send checks.
Receive items and access to rooms from the multiworld.
Complete the final puzzle and escape the mansion for goal completion.
Don't forget about hidden content!

Features 🔗

Item Handling 🔗

The mod processes two types of received items:

Inventory Items - Added directly to your inventory (tools, materials, etc.)
Room Access - Grants access to specific rooms you couldn't enter before

Room access is displayed via a HUD. Rooms that you don't have access to yet will be replaced by empty hallways; expect to travel through a lot of empty hallways early in the game before you've unlocked many rooms.

Location Checks 🔗

Automatically sends location checks when you:

Solve major puzzles - Complete key puzzles throughout the mansion
Enter new rooms - First time entering specific important rooms
Collect items - Pick up replaced items found in the world

Chat Bridge 🔗

In-game chat is bridged to Archipelago. See items other players are sending, use commands like !hint, and chat with other players on the Archipelago server.

Known Issues 🔗

Final Exit Softlock 🔗

If you leave the mansion via the final exit before completing all checks inside (including the Treasure Room) then you will be unable to complete those checks in that world. To access those again, you will need to start a new world, reconnect (you should re-receive your items/access), and complete the necessary puzzles and checks.

Potion Bottles 🔗

Potion brewing does not consume bottles like it does in vanilla. This can feel weird, but it actually helps with progression, because archipelago works the most straight-forwardly when progression items are permanent and non-consumable.

Crown Stacking 🔗

Crowns are stackable (they aren't in vanilla). This is just a quirk of how item handling differs and it's not incorrect in either case.

Forest Machine Puzzle 🔗

The Forest Machine puzzle requires many items (pewter key, pewter sword, pewter plate, obsidian pot, forge access, mold, axe) for a single check, which is somewhat unbalanced. Ideally, we would break it up into several component puzzles, but the mechanics of the gear-molding process make this difficult.

AI Disclosure 🔗

This project was developed jointly by human developer(s) and AI coding agent(s). AI models used may include members of the following model families: OpenCode Zen Big Pickle (based on GLM-4.x), and Copilot Anthropic Claude 4.x. Agent access to the project was managed by SST's OpenCode tool.
